Atomos Ninja 5.2" 4K HDMI Recording Monitor
1080p Display — 1000 nits Brightness — 6K30 ProRes RAW — AtomOS 11
Superior HDR Monitoring and RAW Recording
With an updated operating system, HDR monitoring, and RAW recording capabilities, the Atomos Ninja is a 5.2" on-camera monitor ideal for your next set. This monitor supports DCI 4K HDMI footage and can even record ProRes RAW up to 6K with compatible cameras.
The Ninja retains the same form factor as its predecessors, ensuring perfect compatibility with most Atomos monitor accessories for easy integration with your preexisting equipment.
System Overview
Built for the new Ninja, the AtomOS 11 operating system equips your monitor with new features along with an improved icon interface for more intuitive operation. Access advanced assist functions like Focus Peaking, Zoom, False Color, RecordAssist, and PlayBackAssist effortlessly.
The Ninja supports select Sony, ARRI, RED, Canon, and Nikon log formats. You can upload custom 3D LUTs to the monitor and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats flawlessly.
Compatible with the separately available Atomos CONNECT module to access cloud workflows, 12G-SDI connectivity, Wi-Fi 6, and AirGlu wireless timecode.
Key Features

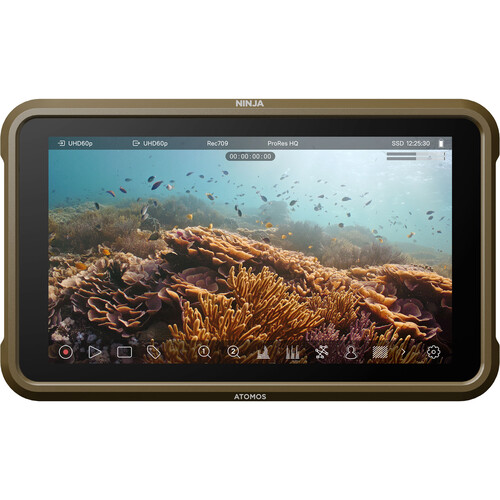

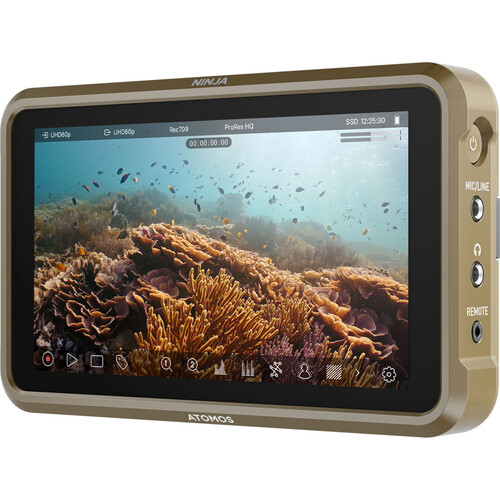

5.2" Touchscreen Display
1920 x 1080 resolution with a stunning 1000 nits brightness for viewing clearly in broad daylight.
ProRes RAW Recording
Record up to 6K at 30 fps over HDMI. Over 55 different cameras support RAW recording with the Ninja.
10-Bit Color Accuracy
Advanced color processing ensures color-accurate, high-quality monitoring of your footage.
Record 4K HDR Gaming
Can be configured as a stand-alone system for UHD 4K, HDR, and high frame rate gaming capture.
Direct SSD Recording
Compatible with Master Caddy II/III to record directly to hard drives and AtomX SSDmini.
Versatile Power Options
Supports NP-F L-series batteries and features a USB-C port for 30W PD power delivery.
Technical Specs
5.2" IPS-Type LCD Touchscreen
1920 x 1080
1000 nits (cd/m²)
1.07 Billion Colors (8-Bit+FRC)

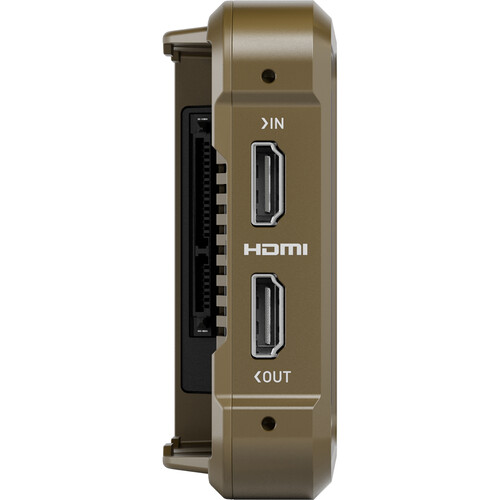

1x HDMI 2.0 Input | 1x HDMI 2.0 Output
ProRes RAW, ProRes, DNxHD, DNxHR
SSDmini/SSD via Master Caddy II/III
AtomRemote (iOS Only)

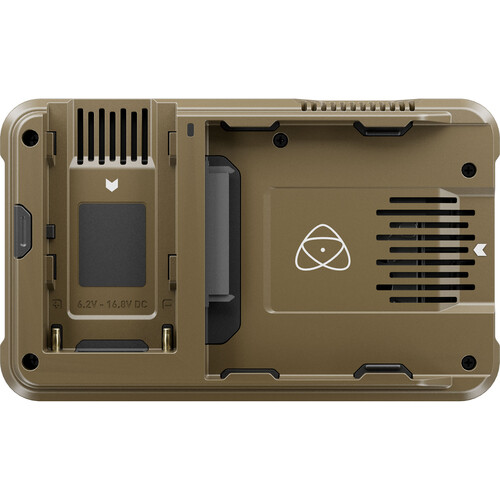

1x L-Series Mount (NP-F)
30 W (via USB-C PD or DC)
151 x 91.5 x 31 mm
360.0 g
What's in the Box
Atomos Ninja 5.2"
4K HDMI Recording Monitor.
Battery Eliminator
For continuous direct power.
USB-C Power Cable
USB-C PD to 2.1mm DC Cable.
