Name: SmallRig 4300 Rotatable Horizontal-to-Vertical Mount Plate Kit for Select Canon R-Series Cameras
Brand: SmallRig
SKU: 4300
Price: 263.35 SAR
Availability: InStock

SmallRig 4300 Rotatable Horizontal-to-Vertical Mount Plate Kit for Select Canon R-Series Cameras

0 reviews • Write a review

from

263.35 ⃁

Ex Tax: 229.00 ⃁

Stock: In Stock
Brand: SmallRig
Model: Mount
SKU: 4300

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Tags: SmallRig , 4300 , Rotatable , Horizontal-to-Vertical , Mount , Plate , Kit , for , Select , Canon , R-Series , Cameras

Description
Reviews

SmallRig 4300 Rotatable Horizontal-to-Vertical Mount Plate Kit (Canon R-Series)

Fast H/V switching without optical axis shift — 90° rotation via single knob — Arca-Type + Manfrotto RC2 compatible — DJI RS support — QD + multiple mounting points

Why Choose 4300?

Pro vertical switching—without re-aligning your lens axis

The SmallRig 4300 is built for select Canon R-series cameras to switch between horizontal and vertical shooting quickly while keeping the lens optical axis consistent.

It preserves full access to the flip LCD, buttons, and ports, and supports Arca-type and Manfrotto RC2 tripod heads, plus compatibility with DJI RS-series gimbals.

Overview

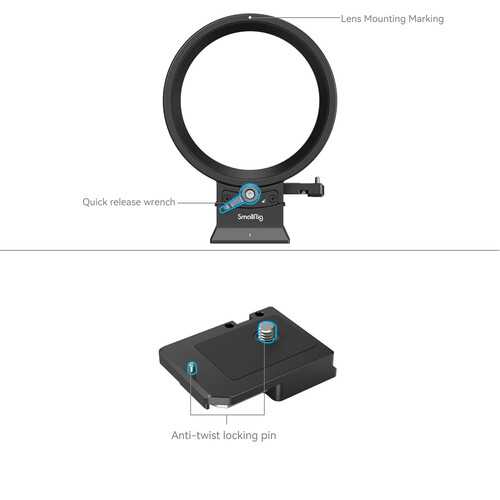

Designed for select Canon R-series cameras, this kit enables fast switching between horizontal and vertical modes without adjusting the lens optical axis. The collar plate rotates 90° by unlocking a knob, and the design maintains full access to the camera’s flip LCD, buttons, and ports.

Multiple mounting points include a strap slot, QD socket, and 1/4\"-20 and 3/8\"-16 holes for flexible rig expansion.

Key Features

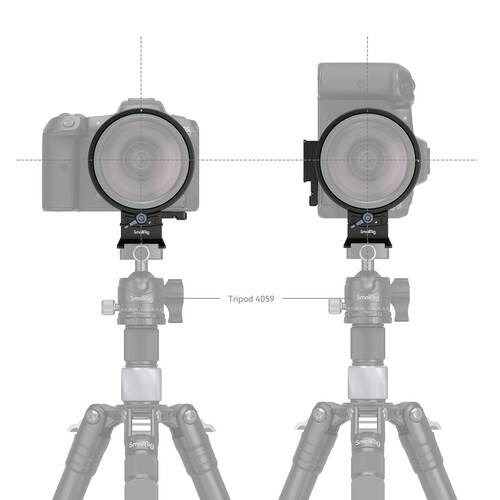

Horizontal-to-Vertical Switching

Rotate 90° to switch orientation while keeping the lens axis consistent.

Arca-Type & Manfrotto RC2 Compatible

Works with Arca-style and RC2 tripod heads, and supports DJI RS-series gimbals.

Full Access to Screen, Buttons & Ports

Designed to keep the flip LCD, controls, and ports usable while mounted.

Multiple Mounting Points

Strap slot, QD socket, and 1/4\"-20 & 3/8\"-16 holes for accessories.

Important: Remove the lens before installing or removing the kit from the camera body.

Compatibility

Camera Compatibility:

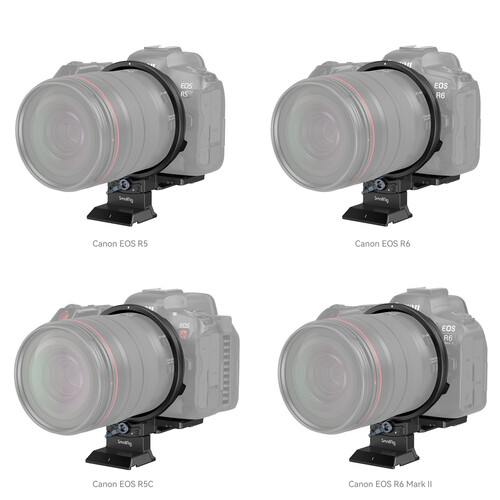

Canon EOS R5, R5C, R6 & R6 Mark II

Tripod Head Compatibility:

Arca-Type & Manfrotto RC2

Gimbal Compatibility:

DJI RS-series

Lens Compatibility (RF):

RF 24-70mm f/2.8, RF 24-105mm f/4, RF 24-105mm f/4-7.1, RF 85mm f/2, RF 50mm f/1.2, RF 100-400mm f/5.6-8, RF 15-35mm f/2.8, RF 100mm f/2.8

Quick Specs

Quick Release Plate Type:

Arca-Type

Quick Disconnect System:

Strap Loop:

Yes

Bubble Level:

Mounting (Male):

1× 1/4\"-20 + 1× 3/8\"-16

Materials:

Aluminum, Steel

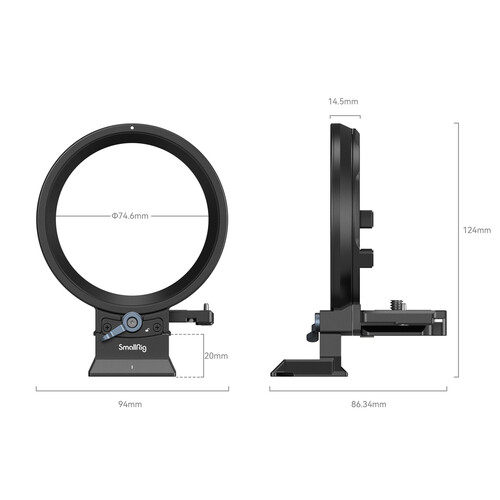

Dimensions:

124 × 94 × 68.7 mm

Weight:

163 g

Package Weight:

Approx. 0.234 kg

Box Dimensions:

Approx. 14.7 × 10.4 × 5.6 cm

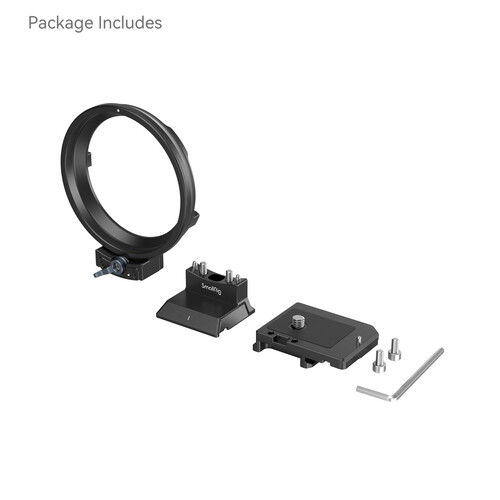

What’s in the Box

SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit

Kit for select Canon R-series cameras.

Lens Ring Mounting Plate

Lens ring mounting plate.

Connector Plate

Connector plate.

Arca-Type Plate & Baseplate

Arca plate and baseplate.

Allen Wrench

Allen key.
