FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor

FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
New
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
0 reviews • Write a review
from
828.00 ⃁
Ex Tax: 720.00 ⃁
  • Stock: In Stock
  • Brand: Feelworld
  • Model: Camera Monitor
  • SKU: F7 PLUS
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product
Tags: FeelWorld F7 Plus , 7" touchscreen monitor , HDMI field monitor , LUT monitor , waveform , focus peaking , zebra , histogram , false color , on-camera video monitor

FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor

1920×1200 (16:10) — Touchscreen — 1200 nits — HDMI 2.0 In/Out up to DCI/UHD 4K60 — HDR (HLG) — microSD LUT — USB-C/DC/NP-F Power — 8V Out — Pro Monitoring Tools

Why Choose F7 Plus?

Ultra-bright 7" touchscreen monitoring with 4K60 pass-through and LUT support

If you shoot outdoors and need a screen that stays visible in bright conditions, the F7 Plus delivers 1200 cd/m² brightness with a sharp 1920×1200 (16:10) touchscreen.

With HDMI 2.0 input and output up to DCI/UHD 4K60, plus a microSD slot for loading 3D LUTs, it’s an excellent field-monitor upgrade for run-and-gun rigs.

Overview

Monitor up to DCI/UHD 4K with the FeelWorld F7 Plus 7" touchscreen HDMI field monitor. Compact and rig-friendly, it provides crisp monitoring with a 1920×1200 resolution and wide 160° viewing angles.

Power it using an NP-F (L-series) battery, USB-C 5V/2A, or 12V DC input. A rear accessory installation block makes it easy to mount a wireless receiver on the back. Use the 8V DC output to power select cameras or accessories (cables/adapters may be required).

Key Features

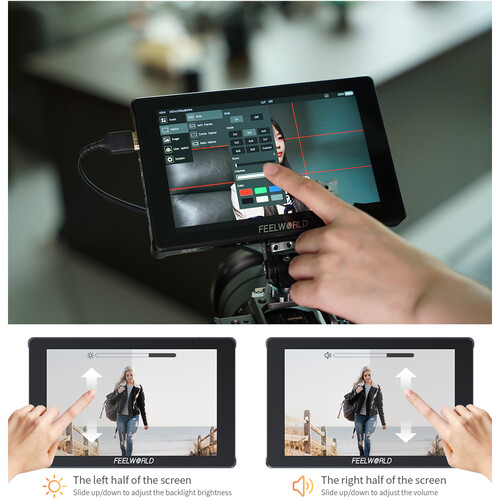

7" 1920×1200 Touchscreen

16:10 panel offers extra vertical space versus standard Full HD monitors.

1200-nit Daylight Visibility

High brightness with 1200:1 contrast and 100% Rec.709 color gamut.

HDMI 2.0 Input & Output up to 4K60

Supports DCI/UHD 4K up to 60 fps for reliable pass-through monitoring.

HDR Support (HLG)

Enhanced dynamic range preview for improved highlight/shadow detail.

3D LUT Loading via microSD

Single microSD slot for LUT import and firmware updates (LUT/Firmware only).

Flexible Power + 8V DC Output

USB-C 5V/2A, 12V DC input, or NP-F battery plate, plus 8V barrel output.

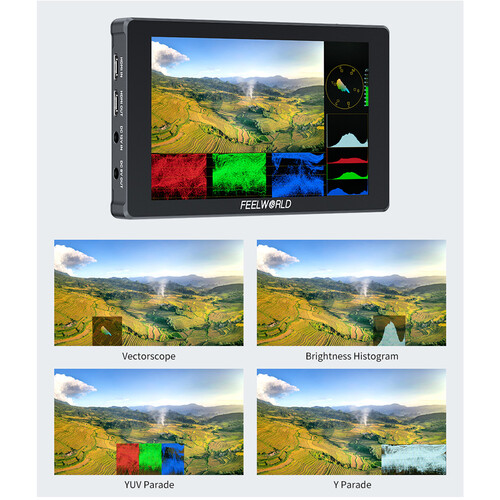

Pro Monitoring Tools

Waveform, vectorscope, histogram, RGB parade, zebra, false color, focus peaking, and more.

3.5mm Headphone Output

Monitor embedded HDMI audio in real time.

Rear Accessory Installation Block

Attach wireless receivers or other compact accessories to the back of the monitor.

11-Language Support

Multi-language UI designed for global crews.

Note: The microSD slot is intended for LUT/Firmware only. 8V output may require a specific power cable or dummy battery adapter.

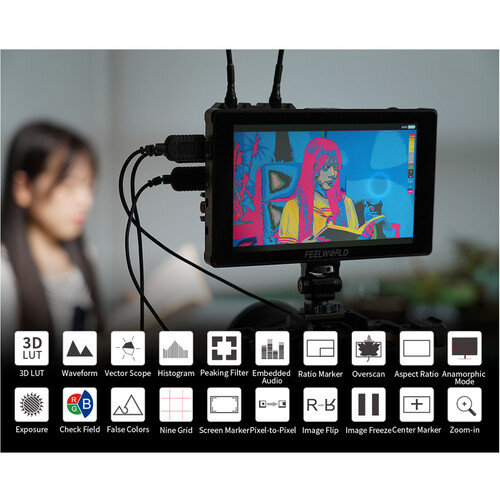

Monitoring Tools

Built-in tools (selection):

Scopes:

Histogram, Vectorscope, Waveform, RGB Parade

Audio:

Audio Level Meters + 3.5mm headphone output

Focus:

Focus Peaking, Focus Assist

Exposure:

False Color, Zebra, Overscan/Underscan

Anamorphic:

Anamorphic De-Squeeze

Framing:

Nine Grid, Frame Markers, 1:1 Pixel Mapping

Image:

Image Flip, Image Freeze

Check Field:

Check Field

Technical Specifications

Panel Type:

IPS-Type LCD

Display Size:

7.0" (17.8 cm)

Native Resolution:

1920 × 1200

Aspect Ratio:

16:10

Viewing Angle:

160° (H) / 160° (V)

Touchscreen:

Yes

Max Brightness:

1200 nits / cd/m²

Contrast Ratio:

1200:1

Color Support:

16.7 Million Colors (8-Bit)

HDR Support:

Yes (Hybrid Log Gamma)

Color Gamut:

100% Rec.709

Video I/O:

1× HDMI 2.0 Input, 1× HDMI 2.0 Output

Embedded Audio:

HDMI

Audio I/O:

1× 3.5 mm headphone output

Built-In Speaker:

No

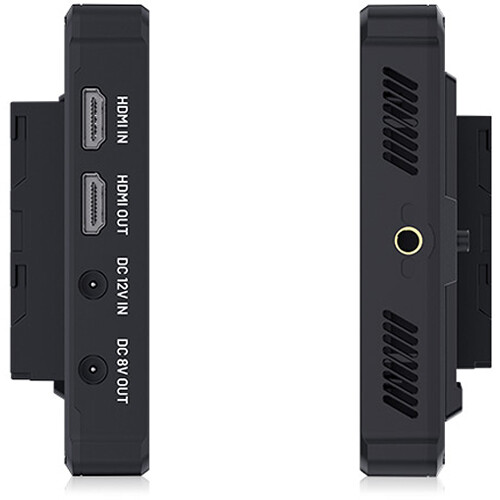

Power I/O:

12V DC (5.5mm) input, USB-C 5V/2A input, 8V DC (5.5mm) output

Input Power:

7 to 24 VDC

Battery Plate:

1× NP-F / L-Series fixed plate

Power Consumption:

15 W

Memory Card Slot:

Single microSD slot (LUT/Firmware only)

Wireless:

Wi‑Fi: No — Bluetooth: No

Mounting:

Top/Bottom/Right — 1× anti-twist 1/4"-20 female

Operating Temp:

-20 to 50°C

Storage Temp:

-30 to 60°C

Dimensions:

18.6 × 11.7 × 2.1 cm

Weight:

389 g

Package Weight:

Approx. 0.84 kg

Box Dimensions:

Approx. 22.9 × 17.8 × 8.1 cm

HDMI Format Support:

DCI/UHD 4K up to 60 fps (incl. 48/47.95) — 1080p/1080i/720p — 576/480

Menu Languages:

Up to 11 languages

What’s in the Box

1

FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor

Monitor.

2

Mini HDMI to HDMI Cable

Cable.

3

Shoe Mount

Mount adapter.

4

HDMI Plug Lock

HDMI cable lock.

5

L-Series Battery Plate

NP-F / L-series battery plate.
