FeelWorld FW568 PRO 6" High-Bright On-Camera 4K HDMI Monitor

FHD 1920×1080 — 1200 nits High-Bright — HDMI 2.0 (Input up to DCI/UHD 4K60) + HDMI Output — HDR HLG (1/2/3) — 3D LUT — Waveform/Vectorscope/Histogram — USB‑C + NP‑F — 8.4V DC Output for Camera Power

Why Choose FW568 PRO?

Daylight-ready 1200‑nit monitor with 4K60 I/O, HDR & 8.4V camera power out

The FW568 PRO is built for field shooting with a 6" display and up to 1200 nits brightness for better readability. It supports HDMI input up to DCI/UHD 4K60 and provides an HDMI output for linking wireless transmitters or larger on-set displays.

Add HDR (HLG1/HLG2/HLG3), pro tools like waveform, vectorscope, and histogram, plus an 8.4V DC output to power your camera from the monitor’s power source.

Overview

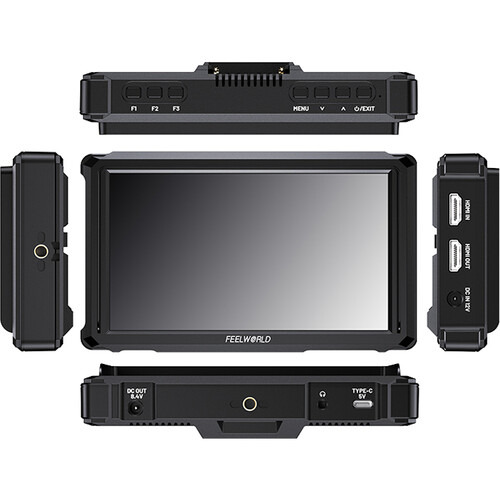

The FeelWorld FW568 PRO is a 6.0" (approx. 15.2 cm) high-bright on-camera monitor with a 1920×1080 display designed for accurate on-set viewing. It accepts HDMI signals up to DCI/UHD 4K60 and offers an HDMI output for passing the signal to other devices such as wireless transmitters.

It includes a wide range of monitoring tools: waveform, vectorscope, histogram, false color, zebra, focus assist, and anamorphic de-squeeze. HDR support with built-in HLG1/HLG2/HLG3 helps reveal more detail in highlights and shadows.

Key Features

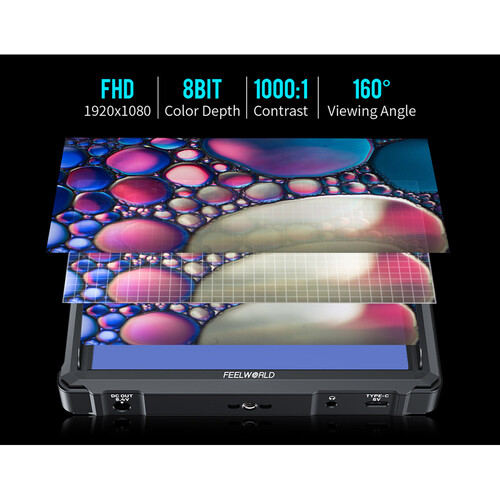

Sharp FHD Display

1920×1080 resolution for clear, detailed monitoring.

4K60 HDMI Input + HDMI Output

Supports DCI/UHD 4K up to 60 fps and passes the signal to external devices.

1200‑Nit High Brightness

Up to 1200 cd/m² brightness for stronger daylight visibility.

HDR (HLG1/HLG2/HLG3)

HDR mode helps show more detail in both highlights and shadows.

Pro Scopes & Assist Tools

Waveform, vectorscope, histogram, zebra, false color, markers, and more.

3D LUT Support

Use built-in LUTs and load custom .cube files (method depends on the included adapter/accessories).

Flexible Power Inputs

USB‑C (5V), 12V DC input, or Sony NP-F (L-series) battery plate.

8.4V DC Camera Power Output

Aux 8.4V output (2.1mm) can power select cameras via optional cables/adapters.

Note: 8.4V output cables/dummy battery adapters are typically sold separately. Custom LUT loading may require a USB-A drive and the included USB-A to USB-C adapter.

Mounting & Control

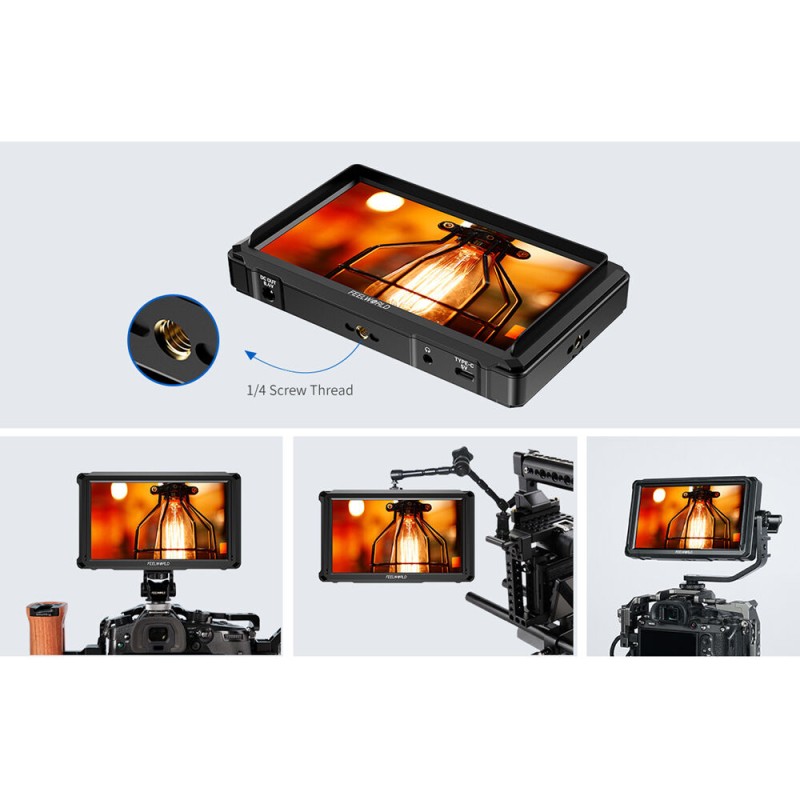

1/4"-20 Mounting Threads

Two mounting points (bottom and left side) for cages, gimbals, and rigs.

Quick-Release Shoe Mount

Included shoe mount enables quick mounting with 180° tilt and 360° rotation.

Buttons + Shortcut Keys

Top buttons plus 3 customizable shortcut keys for faster on-set operation.

Menu User Switching

Save and recall up to 4 user groups for different shooting scenarios.

Technical Specifications

Panel Type:

IPS-Type LCD

Display Size:

6.0" (15.2 cm)

Native Resolution:

1920 × 1080

Aspect Ratio:

16:9

Viewing Angle:

160° (H) / 160° (V)

Touchscreen:

No

Max Brightness:

1200 nits / cd/m²

Contrast Ratio:

1000:1

HDR Support:

Yes

LUT Support:

Yes

Image Tools:

Anamorphic De-Squeeze, Check Field, False Color, Focus Assist, Histogram, Image Flip/Freeze/Rotate, Markers, Overscan/Underscan, Vectorscope, Waveform, Zebra

Video I/O:

1× HDMI 2.0 Input, 1× Mini-HDMI 2.0 Output

Embedded Audio:

HDMI

Audio I/O:

1× 3.5 mm headphone output

Built-In Speaker:

Mono

Power I/O:

USB‑C 5V input, 12V DC input, 8.4V DC (2.1mm) output

Input Power Range:

7 to 24 VDC

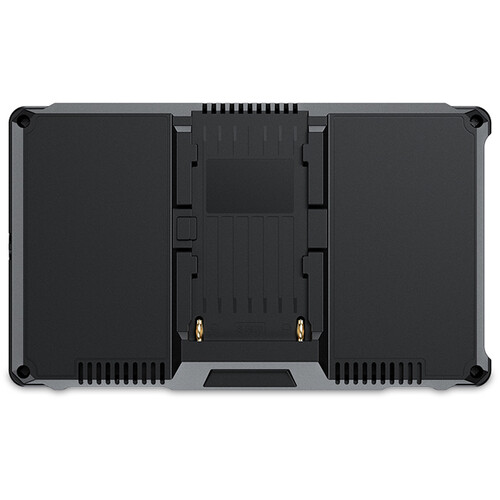

Battery Plate:

1× Sony NP-F / L-Series fixed plate

Power Consumption:

11 W (max)

Media Slot:

No

Wireless:

Wi‑Fi: No — Bluetooth: No

Mounting:

Bottom/Left — 1× Anti-Twist 1/4"-20 Female

Environmental Resistance:

No

Operating Temp:

0 to 50°C

Storage Temp:

-10 to 60°C

Dimensions:

Approx. 16.1 × 9.6 × 3.33 cm

Weight:

Approx. 204 g

Package Weight:

Approx. 0.59 kg

Box Dimensions:

Approx. 18.5 × 14.7 × 8.6 cm

HDMI Format Support:

DCI 4K/UHD 4K up to 60 fps; 1080p/1080i/720p; 480/576

What’s in the Box

1

FeelWorld FW568 PRO 6" High-Bright On-Camera 4K HDMI Monitor

High-bright on-camera monitor.

2

HDMI Cable

HDMI cable.

3

Micro-HDMI Cable

Micro-HDMI cable.

4

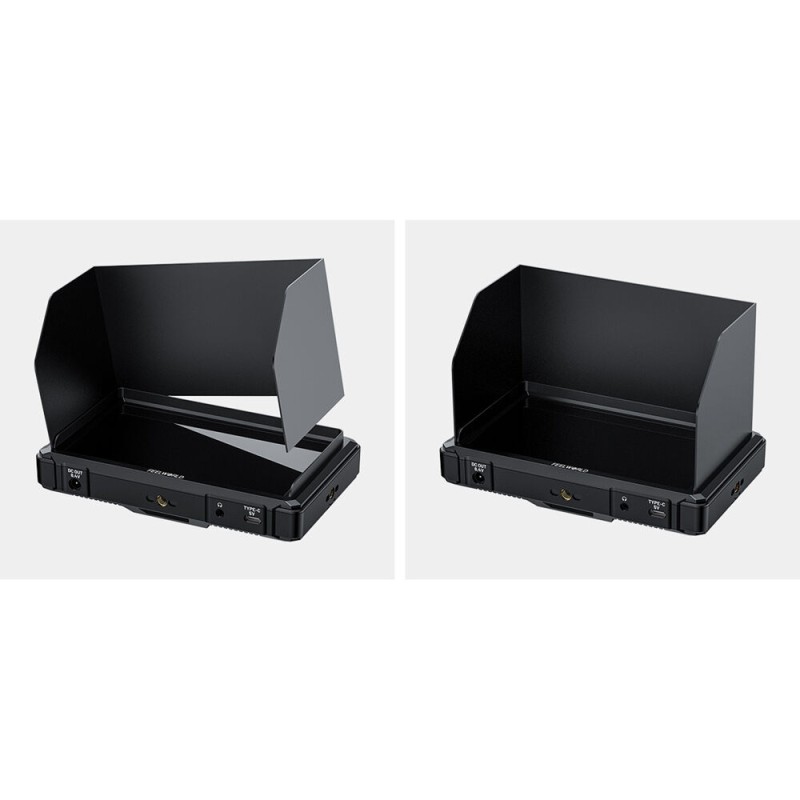

Sun Hood

Snap-on sun hood to reduce glare and reflections.

5

Shoe Mount

Shoe mount with 180° tilt and 360° rotation.

6

Hex Wrench

Hex wrench.

7

USB-A to USB-C Adapter

USB-A to USB-C adapter.

8

Cable Tie

Cable tie.
