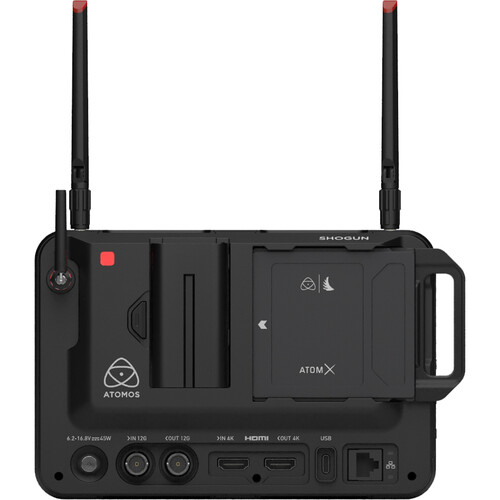

Atomos SHOGUN CONNECT 7" Network-Connected HDR Video Monitor & Recorder 8Kp30/4Kp120

The Shogun CONNECT from Atomos expands upon the HDR recording and monitoring capabilities of the Shogun by integrating cloud connectivity via its multiple wireless interfaces. The 7" 1920 x 1200 touchscreen display boasts a brightness of 2000 cd/m². A loop-through 12G-SDI input and output interface supports SDI RAW recording. Both the HDMI and 12G-SDI connections can record, monitor, and transmit 4K video with ease.

Adobe Frame.io support makes the Shogun CONNECT a camera to cloud device, allowing you to take footage from your camera and transfer it over a long-range connection between other devices. Wi-Fi 6, Bluetooth LE, Gigabit Ethernet, and USB Type-C connection ensure flexible, all-around connectivity. Remote collaboration brings production and post-production closer together with features like dual recording and progressive transfer technology. Power for the Shogun CONNECT can be achieved via the locking DC jack or with a separately available L-series battery.

CONNECT Upgrades


• Features a new, brighter HDR screen and range of built-in interfaces

• Loop through 12G-SDI input/output for SDI RAW and HDMI support an expansive range of professional cinema, DSLR, and mirrorless cameras

• ATOMOS AirGlu technology enables direct, long-range communication between devices up to 0.2 miles and wireless timecode lock


Streaming Capabilities


• Supports livestreaming to Facebook Live, Twitch, and YouTube

• Built-in Wi-Fi 6, Gigabit Ethernet, Bluetooth LE, and the ability to join cellular hotspots


Camera to Cloud Device


• Fully integrated Frame.io camera to cloud device

• With support of HDMI and SDI equipped cameras, it offers advanced online workflows and remote collaboration between filmmakers

• Record, monitor, and share your work from one device


Dual Recording


• Creates matching "hero" Apple ProRes, ProRes RAW, or Avid DHxHR/HD files to a "proxy" HEVC (H.265) file simultaneously

• Proxy files can be uploaded during capture using ATOMOS transfer technology for immediate availability in the cloud post-recording

Shogun Control


• Auto HDMI trigger supports Canon, Sony, Atomos Open Standard

• Camera selectable SDI trigger

• Serial 2.5mm jack for LANC control and calibration with separately available USB to serial cable

• Bluetooth LE control via AtomControl App for monitor assist functions

• Wireless RF AirGlu remote start/stop trigger

Monitor Assist Functions


• 3D LUT

• Anamorphic de-squeeze

• Cine frame guides

• Display flip

• False color

• Focus peaking

• Frame grab

• Grid markers

• Isolate color channel

• Onion skin overlay

• RGB parade

• Safe areas

• Social frame guides

• Vectorscope

• Waveform

• Zebra

• Zoom
